- in a practical STRAUSSbox mini
Ratchet wrench pro 10.0 mm (3/8") / extension 10.0 mm (3/8") 125 mm / cardan joint 10.0 mm (3/8") / sliding head adapter 10.0 mm (3/8") / adapter for electrical drill 10.0 mm (3/8") / bit adapter 10.0 mm (3/8") / reducing adapter 10.0 mm (3/8") to 6.3 mm (1/4") / enlargement adapter 10.0 mm (3/8") to 12.5 mm (1/2") / socket wrench inserts 10.0 mm (3/8"): 6 – 7 – 8 – 9 – 10 – 11 – 12 – 13 – 14 – 15 – 16 – 17 – 18 – 19 – 20 – 21 - 22 mm
- Can be combined with all STRAUSSboxes
- Space-saving box, can be used as a small parts holder or as a lunchbox
- Two STRAUSSbox mini fit into one STRAUSSbox midi
- High-quality polypropylene
- Transparent lid
- Food grade
- metaBOXES and STRAUSSboxes can be combined with each other to 100 %
- Dimensions (WxDxH): 25.2 x 16.7 x 6.3 cm
e.s. Ratchet wrench pro
Lower 4° regrip angle
No space? No problem. The 4º regrip angle allows easy and time-saving use of the e.s. Ratchet wrench even in very tight spaces. Thanks to the newly developed 90-teeth mechanism, the angle compared to conventional fine-tooth wrenches is reduced by 25 %.
High torque
Releases screws when others have long since given up. Despite the fine teeth with 90 teeth, the e.s. Ratchet wrench generates an enormously high torque of up to 750 Nm. This means that it lies 50 % above DIN and releases screws when others have long since given up.
Flat switch lever
Faster switching. The flat lever for setting clockwise or anticlockwise operation closes flush with the casing. This design protects against accidental switching and damage, and obstructions in tight work situations.
Secure push-button lock
Tight connection. Unintentional release of socket wrench inserts of adapter is a thing of the past. The secured socket wrench inserts can be removed at just the push of a button. The push button lock allows fast replacement even with oily hands.
Industrial quality made in Germany
Multi-component test
The form, which is optimally moulded to fit the hand, helps to avoid weals on the hands. Well thought-through details, like the thumb groove, and non-slip zones help support optimised force transmission without loss.
Torque test
The torque test was carried out by a neutral test institute. The test with 10 e.s. Ratchet wrench 'pro' respectively shows no deformation of limitation for a load of more than 50 % of the specified DIN values.
(I) e.s. Ratchet wrench "pro" 1/4" compared to a (II) normal 1/4" Ratchet wrench (acc. to DIN)
(I) e.s. Ratchet wrench "pro" 3/8" compared to a (II) normal 3/8" Ratchet wrench (acc. to DIN)
(I) e.s. Ratchet wrench "pro" 1/2" compared to a (II) normal 1/2" Ratchet wrench (acc. to DIN)
Lifecycle test e.s. Ratchet wrench pro
Endless work. No signs of wear were established in an extensive test comprising more than 30,000 actuations at 175 Nm.
e.s. Cardan joint
The e.s. Cardan joint allows you to access particularly difficult installation positions.
e.s. Extension
Deeper installation positions can be reached with the e.s. Extension easily and efficiently.
e.s. Sliding head adapter
Thanks to the sliding handle adapter, the extension can be converted into a durable sliding handle. Ideal for screw situations where a ratchet would be unsuitable.
e.s. Adapter for drill
Durable hex adapter for the use of socket wrench inserts on battery-operated screwdrivers or drills. The ball lock ensures that the attachments click securely into place.
e.s. Bit adapter
Using the e.s. Bit adapter, the Wrench ratchet opens up a large number of application possibilities thanks to the use of bits.
e.s. Reduction adapter 3/8 to 1/4

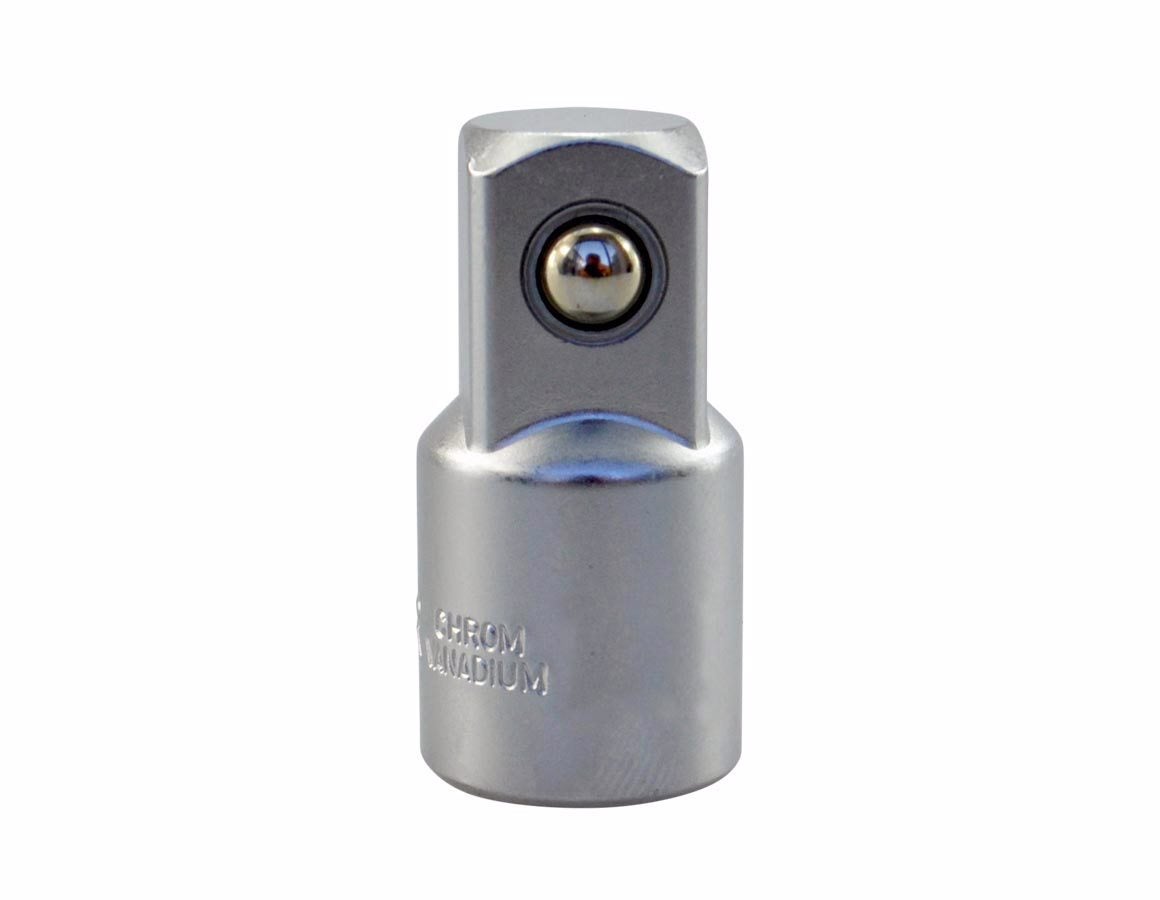

e.s. Enlargement adapter 3/8 to 1/2
e.s. socket wrench inserts
The deeply milled ball grooves ensure a secure hold on the e.s. socket wrench inserts.
Surface in perfection
All e.s. socket wrench inserts are finished with a very durable nickel-chrome coating. The special coating procedure increases the resistance capability toward extternal influences significantly. This makes peeling chrome resulting from heavy loads, scratches on the surface and therefore potential rust areas a thing of the past.
Thanks to the perfected "pro" profile, the force is directly ideally on the edges of the screws. This means that the e.s. socket wrench insert can get a grip even on worn screws and improve the force transmission.
The inner square of the e.s. socket wrench inserts is also equipped with a "pro" profile: its enlarged recesses protect the corners of the drive square and slightly curved edges apply force to the surface.
STRAUSSbox mini
SMALL BOX, GREAT VARIETY
The perfect box that finds a spot everywhere and for everything. Easy to use, can be customised as a small parts magazine and even as a bread box thanks to the food certification.
MANY LITTLE ONES MAKE ONE BIG ONE
Quickly clicked together to form a composite whole where a maximum amount fits into the many minis. And the best part is: all boxes can still be opened and closed.
ALWAYS A PERFECT FIT
The identical metaBOXES and STRAUSSboxes can be combined with each other to 100 %.
PIGGYBACK
All STRAUSSboxes can be combined, even different sizes can be easily linked.
MADE FOR EACH OTHER
Two mini STRAUSSboxes fit perfectly into a midi STAUSSbox. This restores order at your workplace.
